2 - Process

Process

Process : Memory Layout

/* This file is part of the sample code and exercises
 * used by the class "Advanced Programming in the UNIX
 * Environment" taught by Jan Schaumann
 * <jschauma@netmeister.org> at Stevens Institute of
 * Technology.
 *
 * This file is in the public domain.
 *
 * You don't have to, but if you feel like
 * acknowledging where you got this code, you may
 * reference me by name, email address, or point
 * people to the course website:
 * https://stevens.netmeister.org/631/
 */

/* This program allows us to visualize the layout of a
 * process in memory, printing the addresses of
 * various parts of the program, including components
 * in the text, data, and bss segments as well as on
 * the heap and the stack.
 *
 * This program can also illustrate a stack overflow
 * if compiled with '-DSTACKOVERFLOW'.
 */

#include <err.h>
#include <stdio.h>
#include <stdlib.h>
#include <unistd.h>

#define ARRAY_SIZE 16
#define MALLOC_SIZE 32

char array[ARRAY_SIZE];
char *string = "a string";
char *string2;
int num = 10;
int num2;

extern char **environ;

void func(int);
void func2(const char *);

int
main(int argc, char **argv) {
	int var;
	char *ptr;

	char func_array[ARRAY_SIZE];

	(void)printf("High address (args and env):\n");
	(void)printf("----------------------------\n");
	(void)printf("environ[0] at                                          : 0x%12lX\n", (unsigned long)environ);
	(void)printf("last arg at                                            : 0x%12lX\n", (unsigned long)&argv[argc]);
	(void)printf("first arg at                                           : 0x%12lX\n", (unsigned long)&argv[0]);
	(void)printf("\n");

	(void)printf("Stack:\n");
	(void)printf("------\n");
	(void)printf("First variable inside main at                          : 0x%12lX\n", (unsigned long)&var);
	(void)printf("func_array[] ends at                                   : 0x%12lX\n", (unsigned long)&func_array[ARRAY_SIZE]);
	(void)printf("func_array[] (like 'array[]', but on stack) begins at  : 0x%12lX\n", (unsigned long)&func_array[0]);

	(void)printf("argc at                                                : 0x%12lX\n", (unsigned long)&argc);
	(void)printf("argv at                                                : 0x%12lX\n", (unsigned long)&argv);

	func2("from main");
	func(0);

	(void)printf("\n");

	(void)printf("Heap:\n");
	(void)printf("-----\n");
	if ((ptr = malloc(MALLOC_SIZE)) == NULL) {
		err(EXIT_FAILURE, "unable to allocate memory");
		/* NOTREACHED */
	}

	(void)printf("malloced area ends at                                  : 0x%12lX\n", (unsigned long)ptr+MALLOC_SIZE);
	(void)printf("malloced area begins at                                : 0x%12lX\n", (unsigned long)ptr);
	free(ptr);
	(void)printf("\n");

	(void)printf("Uninitialized Data (BSS):\n");
	(void)printf("-------------------------\n");
	(void)printf("array[] ends at                                        : 0x%12lX\n", (unsigned long)&array[ARRAY_SIZE]);
	(void)printf("array[] (uninitialized, fixed-size char * on BSS) from : 0x%12lX\n", (unsigned long)&array[0]);
	(void)printf("num2 (uninitialized global int) at                     : 0x%12lX\n", (unsigned long)&num2);
	(void)printf("string2 (uninitialized global char *) at               : 0x%12lX\n", (unsigned long)&string2);
	(void)printf("extern **environ at                                    : 0x%12lX\n", (unsigned long)&environ);
	(void)printf("\n");

	(void)printf("Initialized Data:\n");
	(void)printf("-----------------\n");
	(void)printf("num (initialized global int) at                        : 0x%12lX\n", (unsigned long)&num);
	(void)printf("string (initialized global char *) at                  : 0x%12lX\n", (unsigned long)&string);
	(void)printf("\n");

	(void)printf("Text Segment:\n");
	(void)printf("-------------\n");
	(void)printf("func2 (function) at                                    : 0x%12lX\n", (unsigned long)&func2);
	(void)printf("func (function) at                                     : 0x%12lX\n", (unsigned long)&func);
	(void)printf("main (function) at                                     : 0x%12lX\n", (unsigned long)&main);
	(void)printf("\n");

	return EXIT_SUCCESS;
}


void
func(int recurse) {
	int fint;
	char *msg = "from func";

	/* Change this value to 0 and note how
	 * the location of where it is stored
	 * changes from the Data to BSS segment. */
	static int n = 1;
	(void)printf("func frame at                                          : 0x%12lX\n", (unsigned long)&fint);

	if (recurse) {
		msg = "recursive";
	}
	(void)printf("static int n within func at                            : 0x%12lX\n", (unsigned long)&n);
	printf("func (called %5d times): frame at                    : 0x%12lX\n", n, (unsigned long)&fint);

	n++;
	func2(msg);
}

void
func2(const char *how) {
	int fint;
	(void)printf("func2 (%s): frame at                            : 0x%12lX\n", how, (unsigned long)&fint);
#ifdef STACKOVERFLOW
	func(1);
#endif
}

OUTPUT

c@c:~/cos3105$ ./memory_layout2
High address (args and env):
----------------------------
environ[0] at                                          : 0x7FFDCBCB41F8
last arg at                                            : 0x7FFDCBCB41F0
first arg at                                           : 0x7FFDCBCB41E8

Stack:
------
First variable inside main at                          : 0x7FFDCBCB4094
func_array[] ends at                                   : 0x7FFDCBCB40B0
func_array[] (like 'array[]', but on stack) begins at  : 0x7FFDCBCB40A0
argc at                                                : 0x7FFDCBCB408C
argv at                                                : 0x7FFDCBCB4080
func2 (from main): frame at                            : 0x7FFDCBCB4064
func frame at                                          : 0x7FFDCBCB405C
static int n within func at                            : 0x5731C2CFA014
func (called     1 times): frame at                    : 0x7FFDCBCB405C
func2 (from func): frame at                            : 0x7FFDCBCB4024

Heap:
-----
malloced area ends at                                  : 0x5731C5DE96D0
malloced area begins at                                : 0x5731C5DE96B0

Uninitialized Data (BSS):
-------------------------
array[] ends at                                        : 0x5731C2CFA040
array[] (uninitialized, fixed-size char * on BSS) from : 0x5731C2CFA030
num2 (uninitialized global int) at                     : 0x5731C2CFA048
string2 (uninitialized global char *) at               : 0x5731C2CFA040
extern **environ at                                    : 0x5731C2CFA020

Initialized Data:
-----------------
num (initialized global int) at                        : 0x5731C2CFA010
string (initialized global char *) at                  : 0x5731C2CFA018

Text Segment:
-------------
func2 (function) at                                    : 0x5731C2CF76A0
func (function) at                                     : 0x5731C2CF75DB
main (function) at                                     : 0x5731C2CF7209

Note

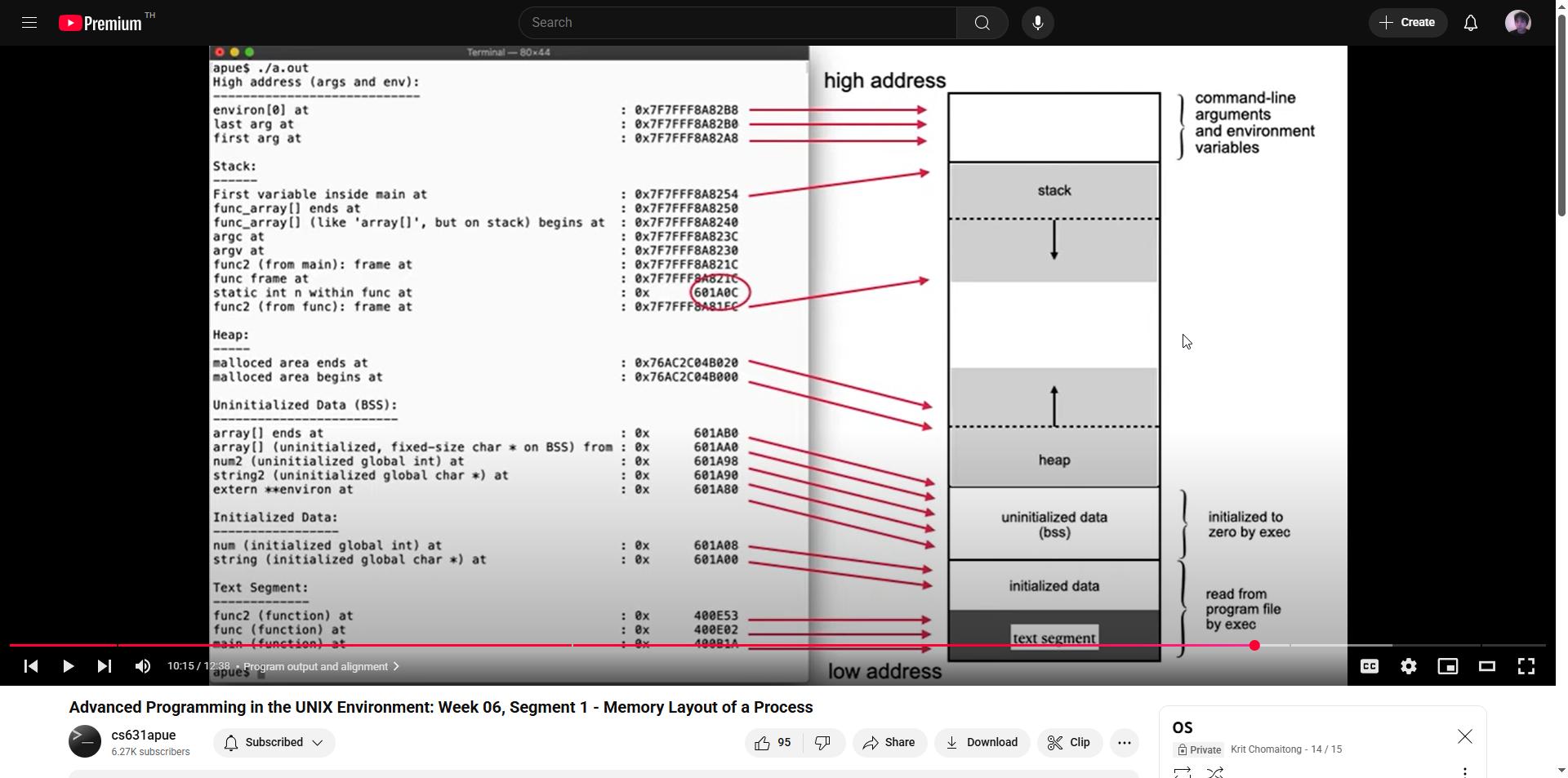

รายละเอียดเพิ่มเติมดูได้จาก https://www.youtube.com/watch?v=aHmcowhoOzU&list=PLP1MYFr-q-2P8Mz37BOaj5Kbv1aINeMAG&index=14&ab_channel=cs631apue

Process : Stack frame

1. Create file memory_layout.c

   memory_layout.c

   #include <stdio.h>
   int global_a;
   int global_b;
   void function1(){
       global_a = 2;
       global_b = 3;
       int local_a = 4;
       int local_b = 5;
   }
   int main(){
       function1();
       return 0;
   }

2. Compile file gcc -g -o memory_layout memory_layout.c
3. Debug file gdb ./memory_layout

   GNU gdb (Ubuntu 15.0.50.20240403-0ubuntu1) 15.0.50.20240403-git
   Copyright (C) 2024 Free Software Foundation, Inc.
   License GPLv3+: GNU GPL version 3 or later <http://gnu.org/licenses/gpl.html>
   This is free software: you are free to change and redistribute it.
   There is NO WARRANTY, to the extent permitted by law.
   Type "show copying" and "show warranty" for details.
   This GDB was configured as "x86_64-linux-gnu".
   Type "show configuration" for configuration details.
   For bug reporting instructions, please see:
   <https://www.gnu.org/software/gdb/bugs/>.
   Find the GDB manual and other documentation resources online at:
       <http://www.gnu.org/software/gdb/documentation/>.

   For help, type "help".
   Type "apropos word" to search for commands related to "word"...
   --Type <RET> for more, q to quit, c to continue without paging--c
   Reading symbols from ./memory_layout...
   (gdb) break function1
   Breakpoint 1 at 0x1131: file memory_layout.c, line 5.
   (gdb) run
   Starting program: /home/c/cos3105/memory_layout

   This GDB supports auto-downloading debuginfo from the following URLs:
     <https://debuginfod.ubuntu.com>
   Enable debuginfod for this session? (y or [n]) y
   Debuginfod has been enabled.
   To make this setting permanent, add 'set debuginfod enabled on' to .gdbinit.
   [Thread debugging using libthread_db enabled]
   Using host libthread_db library "/lib/x86_64-linux-gnu/libthread_db.so.1".

   Breakpoint 1, function1 () at memory_layout.c:5
   5           global_a = 2;

   # Step through to see variables appear
   (gdb) next  # global_a = 2
   (gdb) next  # global_b = 3
   (gdb) next  # int local_a = 4
   (gdb) next  # int local_b = 5

   # Now see all variables in current frame
   (gdb) info locals
   local_a = 4
   local_b = 5

   # Print individual variables
   (gdb) print local_a
   $1 = 4
   (gdb) print local_b
   $2 = 5

   # See the stack frames
   (gdb) bt
   #0  function1 () at program.c:8
   #1  0x... in main () at program.c:11

   # Check what's in the main frame
   (gdb) frame 1
   (gdb) info locals
   # (no local variables in main)

   # Go back to function1 frame
   (gdb) frame 0
   (gdb) info locals
   local_a = 4
   local_b = 5
   (gdb) exit
   A debugging session is active.

           Inferior 1 [process 22869] will be killed.

   Quit anyway? (y or n) y

Process : Process Control Block (PCB)

#include <stdio.h>
#include <stdlib.h>
#include <unistd.h>
#include <sys/types.h>

// Simplified PCB structure (what OS actually maintains)
struct PCB {
    // PROCESS IDENTIFICATION
    pid_t process_id;           // Unique process ID
    pid_t parent_id;            // Parent process ID
    char process_name[256];     // Program name

    // PROCESS STATE
    enum process_state {
        NEW,
        READY,
        RUNNING,
        WAITING,
        TERMINATED
    } state;

    // CPU REGISTERS (saved during context switch)
    struct cpu_registers {
        unsigned long pc;       // Program Counter
        unsigned long sp;       // Stack Pointer
        unsigned long registers[16]; // General purpose registers
        unsigned long flags;    // Status flags
    } cpu_context;

    // MEMORY MANAGEMENT
    struct memory_info {
        void* code_segment;     // Where program code is loaded
        void* data_segment;     // Where global variables are
        void* heap_start;       // Dynamic memory start
        void* stack_start;      // Stack memory start
        size_t memory_size;     // Total memory used
    } memory;

    // SCHEDULING INFORMATION
    int priority;               // Process priority
    int cpu_time_used;         // How much CPU time consumed
    int time_slice_remaining;  // Time left in current slice

    // I/O AND FILES
    struct file_descriptor_table {
        int stdin_fd;           // Standard input
        int stdout_fd;          // Standard output
        int stderr_fd;          // Standard error
        int open_files[64];     // Other open files
    } files;

    // PROCESS RELATIONSHIPS
    struct PCB* parent;         // Pointer to parent PCB
    struct PCB* children[32];   // Pointers to children PCBs
    int num_children;

    // SYNCHRONIZATION
    int waiting_for_resource;   // What resource process waits for
    struct PCB* next_in_queue;  // For ready queue, wait queue, etc.
};

// Function to display PCB information
void display_pcb_info(struct PCB* pcb) {
    printf("=== PROCESS CONTROL BLOCK INFO ===\n\n");

    printf("IDENTIFICATION:\n");
    printf("  Process ID (PID): %d\n", pcb->process_id);
    printf("  Parent ID (PPID): %d\n", pcb->parent_id);
    printf("  Process Name: %s\n", pcb->process_name);

    printf("\nSTATE:\n");
    char* state_names[] = {"NEW", "READY", "RUNNING", "WAITING", "TERMINATED"};
    printf("  Current State: %s\n", state_names[pcb->state]);

    printf("\nCPU CONTEXT:\n");
    printf("  Program Counter: 0x%lx\n", pcb->cpu_context.pc);
    printf("  Stack Pointer: 0x%lx\n", pcb->cpu_context.sp);
    printf("  Registers: [saved during context switch]\n");

    printf("\nMEMORY:\n");
    printf("  Code Segment: %p\n", pcb->memory.code_segment);
    printf("  Data Segment: %p\n", pcb->memory.data_segment);
    printf("  Heap Start: %p\n", pcb->memory.heap_start);
    printf("  Stack Start: %p\n", pcb->memory.stack_start);
    printf("  Memory Size: %zu bytes\n", pcb->memory.memory_size);

    printf("\nSCHEDULING:\n");
    printf("  Priority: %d\n", pcb->priority);
    printf("  CPU Time Used: %d ms\n", pcb->cpu_time_used);
    printf("  Time Slice Remaining: %d ms\n", pcb->time_slice_remaining);

    printf("\nFILES:\n");
    printf("  stdin: %d, stdout: %d, stderr: %d\n",
           pcb->files.stdin_fd, pcb->files.stdout_fd, pcb->files.stderr_fd);

    printf("\nRELATIONSHIPS:\n");
    printf("  Number of Children: %d\n", pcb->num_children);
}

// Simulate creating a PCB for current process
struct PCB* create_current_process_pcb() {
    struct PCB* pcb = malloc(sizeof(struct PCB));

    // Fill in real information about current process
    pcb->process_id = getpid();
    pcb->parent_id = getppid();
    snprintf(pcb->process_name, sizeof(pcb->process_name), "demo_process");

    pcb->state = RUNNING;  // Currently running since we're executing

    // Simulate some values (real OS gets these from hardware)
    pcb->cpu_context.pc = 0x400000;  // Typical code start address
    pcb->cpu_context.sp = 0x7fff0000; // Typical stack address

    pcb->memory.code_segment = (void*)0x400000;
    pcb->memory.data_segment = (void*)0x600000;
    pcb->memory.heap_start = (void*)0x800000;
    pcb->memory.stack_start = (void*)0x7fff0000;
    pcb->memory.memory_size = 1024 * 1024; // 1MB

    pcb->priority = 20;  // Normal priority
    pcb->cpu_time_used = 150;
    pcb->time_slice_remaining = 50;

    pcb->files.stdin_fd = 0;
    pcb->files.stdout_fd = 1;
    pcb->files.stderr_fd = 2;

    pcb->num_children = 0;
    pcb->waiting_for_resource = 0;

    return pcb;
}

// Show how PCB is used during context switching
void demonstrate_context_switch() {
    printf("\n=== HOW PCB IS USED IN CONTEXT SWITCHING ===\n\n");

    printf("When OS switches from Process A to Process B:\n\n");

    printf("1. SAVE Process A's context:\n");
    printf("   - Save CPU registers to PCB_A\n");
    printf("   - Save program counter to PCB_A\n");
    printf("   - Save stack pointer to PCB_A\n");
    printf("   - Update PCB_A state to READY\n");
    printf("   - Add PCB_A to ready queue\n\n");

    printf("2. LOAD Process B's context:\n");
    printf("   - Load CPU registers from PCB_B\n");
    printf("   - Load program counter from PCB_B\n");
    printf("   - Load stack pointer from PCB_B\n");
    printf("   - Update PCB_B state to RUNNING\n");
    printf("   - Continue execution where B left off\n\n");

    printf("The PCB is what makes this possible!\n");
    printf("Without PCB, the OS wouldn't know where to resume each process.\n");
}

// Show process states using PCB
void demonstrate_process_states() {
    printf("\n=== PROCESS STATES IN PCB ===\n\n");

    printf("NEW:        Process created, PCB allocated, not yet loaded\n");
    printf("READY:      Process loaded, waiting for CPU assignment\n");
    printf("RUNNING:    Process currently executing on CPU\n");
    printf("WAITING:    Process blocked, waiting for I/O or resource\n");
    printf("TERMINATED: Process finished, PCB being cleaned up\n\n");

    printf("State transitions:\n");
    printf("NEW → READY:       OS loads process into memory\n");
    printf("READY → RUNNING:   Scheduler assigns CPU\n");
    printf("RUNNING → READY:   Time slice expires\n");
    printf("RUNNING → WAITING: Process requests I/O\n");
    printf("WAITING → READY:   I/O completes\n");
    printf("RUNNING → TERMINATED: Process exits\n");
}

int main() {
    printf("=== PROCESS CONTROL BLOCK (PCB) DEMONSTRATION ===\n\n");

    printf("WHAT IS PCB?\n");
    printf("• PCB = Process Control Block\n");
    printf("• OS data structure that REPRESENTS a process\n");
    printf("• Contains ALL information needed to manage the process\n");
    printf("• One PCB per process in the system\n\n");

    // Create and display a sample PCB
    struct PCB* current_pcb = create_current_process_pcb();
    display_pcb_info(current_pcb);

    demonstrate_context_switch();
    demonstrate_process_states();

    printf("\n=== KEY POINTS ABOUT PCB ===\n");
    printf("✓ PCB REPRESENTS the process to the OS\n");
    printf("✓ Process = running program, PCB = OS's record of it\n");
    printf("✓ OS uses PCB for scheduling, memory management, I/O\n");
    printf("✓ Context switching = saving/loading PCB information\n");
    printf("✓ Each process has exactly one PCB\n");
    printf("✓ PCB exists even when process is not running\n");

    free(current_pcb);
    return 0;
}

Process : Create Process

C

create_process.c

#include <stdio.h>
#include <unistd.h>
#include <sys/types.h>
int main()
{
     pid_t p;
     p=fork();
     if(p==0) //child
     {
         printf("I am child having PID %d\n",getpid());
         printf("My parent PID is %d\n",getppid());
     }
     else //parent
     {
         printf("I am parent having PID %d\n",getpid());
         printf("My child PID is %d\n",p);
     }
     char read[2];
     fgets(read,sizeof(read),stdin);
}

C++

create_process.cpp

#include <iostream>
#include <unistd.h>
#include <sys/wait.h>

using namespace std;

int main(){
    pid_t pid = fork();
    if (pid==0){
        cout << "Child ID : " << getpid()
        << ", Parent ID : " << getppid() << endl;
    }else{
        cout << "Parent ID : " << getpid()
        << ", Child ID : " << pid << endl;

        wait(nullptr);
    }
}

OUTPUT

c@c:~/cos3105$ ./create_process
I am parent having PID 30752
My child PID is 30753
I am child having PID 30753
My parent PID is 30752

• Open another terminal

ps aux | grep "create_process"

OUTPUT

c@c:~/cos3105$ ps aux | grep "create_process"
c          30752  0.0  0.0   2680  1536 pts/1    S+   15:06   0:00 ./create_process
c          30753  0.0  0.0   2680   896 pts/1    S+   15:06   0:00 ./create_process
c          30837  0.0  0.0   6676  2304 pts/0    S+   15:06   0:00 grep --color=auto create_process

Process : Show process tree

1. pstree

pstree

OUTPUT

c@c:~/cos3105$ pstree
systemd─┬─ModemManager───3*[{ModemManager}]
        ├─agetty
        ├─cron
        ├─dbus-daemon
        ├─multipathd───6*[{multipathd}]
        ├─node─┬─node─┬─node─┬─bash───pstree
        │      │      │      ├─bash───create_process───create_process
        │      │      │      └─12*[{node}]
        │      │      ├─2*[node───12*[{node}]]
        │      │      └─10*[{node}]
        │      └─10*[{node}]
        ├─polkitd───3*[{polkitd}]
        ├─rsyslogd───3*[{rsyslogd}]
        ├─systemd-journal
        ├─systemd-logind
        ├─systemd-network
        ├─systemd-resolve
        ├─systemd-timesyn───{systemd-timesyn}
        ├─systemd-udevd
        ├─udisksd───5*[{udisksd}]
        ├─unattended-upgr───{unattended-upgr}
        └─upowerd───3*[{upowerd}]

2. pstree with PIDs:

pstree -p

OUTPUT

c@c:~/cos3105$ pstree -p
systemd(1)─┬─ModemManager(816)─┬─{ModemManager}(833)
           │                   ├─{ModemManager}(838)
           │                   └─{ModemManager}(841)
           ├─agetty(882)
           ├─cron(873)
           ├─dbus-daemon(729)
           ├─multipathd(365)─┬─{multipathd}(381)
           │                 ├─{multipathd}(382)
           │                 ├─{multipathd}(383)
           │                 ├─{multipathd}(384)
           │                 ├─{multipathd}(385)
           │                 └─{multipathd}(386)
           ├─node(728)─┬─node(911)─┬─node(1110)─┬─bash(1121)───pstree(242065)
           │           │           │            ├─bash(11587)───create_process(32019)───create_process(32020)
           │           │           │            ├─{node}(1111)
           │           │           │            ├─{node}(1112)
           │           │           │            ├─{node}(1113)
           │           │           │            ├─{node}(1114)
           │           │           │            ├─{node}(1115)
           │           │           │            ├─{node}(1116)
           │           │           │            ├─{node}(1117)
           │           │           │            ├─{node}(1118)
           │           │           │            ├─{node}(1119)
           │           │           │            ├─{node}(1120)
           │           │           │            ├─{node}(1122)
           │           │           │            └─{node}(11588)
           │           │           ├─node(241465)─┬─{node}(241466)
           │           │           │              ├─{node}(241467)
           │           │           │              ├─{node}(241468)
           │           │           │              ├─{node}(241469)
           │           │           │              ├─{node}(241470)
           │           │           │              ├─{node}(241471)
           │           │           │              ├─{node}(241472)
           │           │           │              ├─{node}(241473)
           │           │           │              ├─{node}(241474)
           │           │           │              ├─{node}(241475)
           │           │           │              ├─{node}(241476)
           │           │           │              └─{node}(241483)
           │           │           ├─node(241484)─┬─{node}(241485)
           │           │           │              ├─{node}(241486)
           │           │           │              ├─{node}(241487)
           │           │           │              ├─{node}(241488)
           │           │           │              ├─{node}(241489)
           │           │           │              ├─{node}(241490)
           │           │           │              ├─{node}(241491)
           │           │           │              ├─{node}(241492)
           │           │           │              ├─{node}(241493)
           │           │           │              ├─{node}(241494)
           │           │           │              ├─{node}(241496)
           │           │           │              └─{node}(241497)
           │           │           ├─{node}(913)
           │           │           ├─{node}(914)
           │           │           ├─{node}(915)
           │           │           ├─{node}(916)
           │           │           ├─{node}(917)
           │           │           ├─{node}(918)
           │           │           ├─{node}(919)
           │           │           ├─{node}(920)
           │           │           ├─{node}(921)
           │           │           └─{node}(922)
           │           ├─{node}(826)
           │           ├─{node}(827)
           │           ├─{node}(828)
           │           ├─{node}(829)
           │           ├─{node}(830)
           │           ├─{node}(857)
           │           ├─{node}(901)
           │           ├─{node}(902)
           │           ├─{node}(903)
           │           └─{node}(904)
           ├─polkitd(734)─┬─{polkitd}(790)
           │              ├─{polkitd}(791)
           │              └─{polkitd}(793)
           ├─rsyslogd(823)─┬─{rsyslogd}(853)
           │               ├─{rsyslogd}(854)
           │               └─{rsyslogd}(855)
           ├─systemd-journal(314)
           ├─systemd-logind(741)
           ├─systemd-network(560)
           ├─systemd-resolve(577)
           ├─systemd-timesyn(588)───{systemd-timesyn}(699)
           ├─systemd-udevd(380)
           ├─udisksd(743)─┬─{udisksd}(759)
           │              ├─{udisksd}(760)
           │              ├─{udisksd}(762)
           │              ├─{udisksd}(819)
           │              └─{udisksd}(847)
           ├─unattended-upgr(780)───{unattended-upgr}(859)
           └─upowerd(4275)─┬─{upowerd}(4277)
                           ├─{upowerd}(4278)
                           └─{upowerd}(4279)

3. ps command with tree format:

ps axf

OUTPUT

c@c:~/cos3105$ ps axf
    PID TTY      STAT   TIME COMMAND
      2 ?        S      0:00 [kthreadd]
      3 ?        S      0:00  \_ [pool_workqueue_release]
      4 ?        I<     0:00  \_ [kworker/R-rcu_g]
      5 ?        I<     0:00  \_ [kworker/R-rcu_p]
      6 ?        I<     0:00  \_ [kworker/R-slub_]
      7 ?        I<     0:00  \_ [kworker/R-netns]
     10 ?        I<     0:00  \_ [kworker/0:0H-events_highpri]
     11 ?        I      0:00  \_ [kworker/u4:0-ext4-rsv-conversion]
     12 ?        I<     0:00  \_ [kworker/R-mm_pe]
     13 ?        I      0:00  \_ [rcu_tasks_kthread]
     14 ?        I      0:00  \_ [rcu_tasks_rude_kthread]
     15 ?        I      0:00  \_ [rcu_tasks_trace_kthread]
     16 ?        S      0:01  \_ [ksoftirqd/0]
     17 ?        I      0:17  \_ [rcu_preempt]
     18 ?        S      0:01  \_ [migration/0]
     19 ?        S      0:00  \_ [idle_inject/0]
     20 ?        S      0:00  \_ [cpuhp/0]
     21 ?        S      0:00  \_ [cpuhp/1]
     22 ?        S      0:00  \_ [idle_inject/1]
     23 ?        S      0:01  \_ [migration/1]
     24 ?        S      0:03  \_ [ksoftirqd/1]
     26 ?        I<     0:02  \_ [kworker/1:0H-kblockd]
     29 ?        S      0:00  \_ [kdevtmpfs]
     30 ?        I<     0:00  \_ [kworker/R-inet_]
     32 ?        S      0:00  \_ [kauditd]
     33 ?        S      0:00  \_ [khungtaskd]
     34 ?        S      0:00  \_ [oom_reaper]
     36 ?        I<     0:00  \_ [kworker/R-write]
     37 ?        S      0:06  \_ [kcompactd0]
     38 ?        SN     0:00  \_ [ksmd]
     40 ?        SN     0:00  \_ [khugepaged]
     41 ?        I<     0:00  \_ [kworker/R-kinte]
     42 ?        I<     0:00  \_ [kworker/R-kbloc]
     43 ?        I<     0:00  \_ [kworker/R-blkcg]
     44 ?        S      0:00  \_ [irq/9-acpi]
     45 ?        I<     0:00  \_ [kworker/R-tpm_d]
     46 ?        I<     0:00  \_ [kworker/R-ata_s]
     47 ?        I<     0:00  \_ [kworker/R-md]
     48 ?        I<     0:00  \_ [kworker/R-md_bi]
     49 ?        I<     0:00  \_ [kworker/R-edac-]
     50 ?        I<     0:00  \_ [kworker/R-devfr]
     51 ?        S      0:00  \_ [watchdogd]
     54 ?        S      0:00  \_ [kswapd0]
     55 ?        S      0:00  \_ [ecryptfs-kthread]
     56 ?        I<     0:00  \_ [kworker/R-kthro]
     57 ?        I<     0:00  \_ [kworker/R-acpi_]
     59 ?        S      0:00  \_ [scsi_eh_0]
     60 ?        I<     0:00  \_ [kworker/R-scsi_]
     61 ?        S      0:00  \_ [scsi_eh_1]
     62 ?        I<     0:00  \_ [kworker/R-scsi_]
     65 ?        I<     0:00  \_ [kworker/R-mld]
     66 ?        I<     0:00  \_ [kworker/R-ipv6_]
     73 ?        I<     0:00  \_ [kworker/R-kstrp]
     75 ?        I<     0:00  \_ [kworker/u7:0]
     76 ?        I<     0:00  \_ [kworker/u8:0]
     77 ?        I<     0:00  \_ [kworker/u9:0]
     82 ?        I<     0:00  \_ [kworker/R-crypt]
     93 ?        I<     0:00  \_ [kworker/R-charg]
    120 ?        I<     0:02  \_ [kworker/0:1H-kblockd]
    161 ?        S      0:00  \_ [scsi_eh_2]
    162 ?        I<     0:00  \_ [kworker/R-scsi_]
    176 ?        I<     0:00  \_ [kworker/R-kdmfl]
    206 ?        I<     0:00  \_ [kworker/R-raid5]
    229 ?        I<     0:00  \_ [kworker/1:2H-kblockd]
    246 ?        S      0:04  \_ [jbd2/dm-0-8]
    247 ?        I<     0:00  \_ [kworker/R-ext4-]
    309 ?        S      0:00  \_ [psimon]
    342 ?        I<     0:00  \_ [kworker/R-kmpat]
    344 ?        I<     0:00  \_ [kworker/R-kmpat]
    367 ?        I      0:00  \_ [kworker/u4:1-ext4-rsv-conversion]
    394 ?        S      0:00  \_ [psimon]
    474 ?        S      0:00  \_ [irq/18-vmwgfx]
    476 ?        I<     0:00  \_ [kworker/R-ttm]
    479 ?        S      0:00  \_ [jbd2/sda2-8]
    480 ?        I<     0:00  \_ [kworker/R-ext4-]
    707 ?        I<     0:00  \_ [kworker/R-cfg80]
 103557 ?        I<     0:00  \_ [kworker/R-tls-s]
 179147 ?        I      1:35  \_ [kworker/1:0-events]
 204808 ?        I      0:00  \_ [kworker/u5:3-flush-252:0]
 221214 ?        I      0:30  \_ [kworker/1:2-events]
 235923 ?        I      0:00  \_ [kworker/u5:1-events_unbound]
 238601 ?        I      0:00  \_ [kworker/u6:1-events_power_efficient]
 238672 ?        I      0:00  \_ [kworker/u5:0-events_unbound]
 240464 ?        I      0:02  \_ [kworker/0:0-events]
 241453 ?        I      0:00  \_ [kworker/u6:2-events_unbound]
 241458 ?        I      0:00  \_ [kworker/0:2-cgroup_destroy]
 241459 ?        I      0:00  \_ [kworker/u6:4-flush-252:0]
 241706 ?        I      0:00  \_ [kworker/1:1]
      1 ?        Ss     0:05 /sbin/init
    314 ?        S<s    0:01 /usr/lib/systemd/systemd-journald
    365 ?        SLsl   0:13 /sbin/multipathd -d -s
    380 ?        Ss     0:00 /usr/lib/systemd/systemd-udevd
    560 ?        Ss     0:00 /usr/lib/systemd/systemd-networkd
    577 ?        Ss     0:00 /usr/lib/systemd/systemd-resolved
    588 ?        Ssl    0:00 /usr/lib/systemd/systemd-timesyncd
    728 ?        Ssl    0:00 /usr/lib/code-server/lib/node /usr/lib/code-server
    911 ?        Sl     1:38  \_ /usr/lib/code-server/lib/node /usr/lib/code-server/out/node/entry
   1110 ?        Sl     2:27      \_ /usr/lib/code-server/lib/node /usr/lib/code-server/lib/vscode/out/bootstrap-fork --type=ptyHost --logsPath /home/c/.local/share/code-server/logs/20250824T125250
   1121 pts/0    Ss     0:00      |   \_ /bin/bash --init-file /usr/lib/code-server/lib/vscode/out/vs/workbench/contrib/terminal/common/scripts/shellIntegration-bash.sh
 242203 pts/0    R+     0:00      |   |   \_ ps axf
  11587 pts/1    Ss     0:00      |   \_ /bin/bash
  32019 pts/1    S+     0:00      |       \_ ./create_process
  32020 pts/1    S+     0:00      |           \_ ./create_process
 241465 ?        Sl     0:08      \_ /usr/lib/code-server/lib/node --dns-result-order=ipv4first /usr/lib/code-server/lib/vscode/out/bootstrap-fork --type=extensionHost --transformURIs --useHostProxy=false
 241484 ?        Sl     0:00      \_ /usr/lib/code-server/lib/node /usr/lib/code-server/lib/vscode/out/bootstrap-fork --type=fileWatcher
    729 ?        Ss     0:01 @dbus-daemon --system --address=systemd: --nofork --nopidfile --systemd-activation --syslog-only
    734 ?        Ssl    0:02 /usr/lib/polkit-1/polkitd --no-debug
    741 ?        Ss     0:00 /usr/lib/systemd/systemd-logind
    743 ?        Ssl    0:02 /usr/libexec/udisks2/udisksd
    780 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
    816 ?        Ssl    0:00 /usr/sbin/ModemManager
    823 ?        Ssl    0:00 /usr/sbin/rsyslogd -n -iNONE
    873 ?        Ss     0:00 /usr/sbin/cron -f -P
    882 tty1     Ss+    0:00 /sbin/agetty -o -p -- \u --noclear - linux
   4275 ?        Ssl    0:05 /usr/libexec/upowerd

4. Show specific process tree:

• pstree PID

pstree 1

OUTPUT

c@c:~/cos3105$ pstree 1
systemd─┬─ModemManager───3*[{ModemManager}]
        ├─agetty
        ├─cron
        ├─dbus-daemon
        ├─multipathd───6*[{multipathd}]
        ├─node─┬─node─┬─node─┬─bash───pstree
        │      │      │      ├─bash───create_process───create_process
        │      │      │      └─12*[{node}]
        │      │      ├─2*[node───12*[{node}]]
        │      │      └─10*[{node}]
        │      └─10*[{node}]
        ├─polkitd───3*[{polkitd}]
        ├─rsyslogd───3*[{rsyslogd}]
        ├─systemd-journal
        ├─systemd-logind
        ├─systemd-network
        ├─systemd-resolve
        ├─systemd-timesyn───{systemd-timesyn}
        ├─systemd-udevd
        ├─udisksd───5*[{udisksd}]
        ├─unattended-upgr───{unattended-upgr}
        └─upowerd───3*[{upowerd}]

Process : Create Orphan Process

create_orphan_process.c

#include <stdio.h>
#include <unistd.h>
#include <sys/types.h>
int main()
{
    pid_t p;
    p=fork();
    if(p==0)
    {
        sleep(5); //child goes to sleep and in the mean time parent terminates
        printf("I am child having PID %d\n",getpid());
        printf("My parent PID is %d\n",getppid());
    }
    else
    {
        printf("I am parent having PID %d\n",getpid());
        printf("My child PID is %d\n",p);
    }
}

OUTPUT

Caution

ในกรณี orphan process ตัว parent process ได้จบการทำงานไปก่อน ทำให้ id จะเปลี่ยนไป ไม่ใช่ id เดิม

Process : Create Zombie Process

create_zombie_process.c

#include <stdio.h>
#include <unistd.h>
#include <sys/types.h>
int main()
{
    pid_t t;
    t=fork();
    if(t==0)
    {
   	    printf("Child having id %d\n",getpid());
	}
	else
	{
    	printf("Parent having id %d\n",getpid());
    	sleep(15); // Parent sleeps. Run the ps command during this time
	}
}

OUTPUT

Caution

ในกรณี zombie process ตัว child process ได้จบการทำงานไปก่อน แต่ยังต้องคาเอาไว้เพราะตัว parent process ยังถือว่าทำงานอยู่

Process : Prevent Zombie process by wait()

prevent_zombie_process.c

#include <unistd.h>
#include <sys/types.h>
#include <stdio.h>
#include <sys/wait.h>
int main()
{
    pid_t p;
    printf("before fork\n");
    p=fork();
    if(p==0)//child
    {
        printf("I am child having id %d\n",getpid());
        printf("My parent's id is %d\n",getppid());
    }
    else//parent
    {
        wait(NULL);
        printf("My child's id is %d\n",p);
        printf("I am parent having id %d\n",getpid());
    }
    printf("Common\n");
}

OUTPUT

Process : Simulate context switch among process

Note

The sched_yield() is a voluntary system call that causes the calling process to give up the CPU and triggers the OS scheduler to potentially switch to another process. However, there are important details to understand:

How sched_yield() Works

1. Voluntary Context Switch:

The process voluntarily relinquishes the CPU. It moves from “running” to “ready” state. The scheduler is invoked to select the next process.

2. Scheduler Behavior:

If there are other runnable processes with the same or higher priority, the scheduler will switch to them. If no other processes are ready, the same process may continue running immediately. The exact behavior depends on the scheduling policy (CFS, RT, etc.).

#include <stdio.h>
#include <stdlib.h>
#include <unistd.h>
#include <sys/wait.h>
#include <signal.h>
#include <sys/types.h>
#include <sched.h>

void process_task(const char* name, int task_id, int duration) {
    printf("Process %s (PID: %d) started\n", name, getpid());

    for (int i = 0; i < duration; i++) {
        printf("Process %s: Step %d/%d (PID: %d)\n",
               name, i + 1, duration, getpid());
        sleep(1);

        // Simulate voluntary context switch by calling sched_yield()
        if (i < duration - 1) {
            printf("Process %s yielding CPU...\n", name);
            sched_yield();
        }
    }

    printf("Process %s (PID: %d) completed\n", name, getpid());
}

void demonstrate_context_info() {
    printf("\nContext Switch Information:\n");
    printf("==========================\n");
    printf("Parent PID: %d\n", getppid());
    printf("Current PID: %d\n", getpid());
    printf("Process Group ID: %d\n", getpgrp());

    // Show some context information
    printf("User ID: %d\n", getuid());
    printf("Group ID: %d\n", getgid());
}

int main() {
    printf("Process Context Switch Demonstration\n");
    printf("====================================\n");

    demonstrate_context_info();

    pid_t pid1, pid2, pid3;
    int status;

    // Create first child process
    pid1 = fork();
    if (pid1 == 0) {
        // Child process 1
        process_task("Task-A", 1, 3);
        exit(0);
    } else if (pid1 < 0) {
        perror("Fork failed");
        exit(1);
    }

    // Create second child process
    pid2 = fork();
    if (pid2 == 0) {
        // Child process 2
        process_task("Task-B", 2, 4);
        exit(0);
    } else if (pid2 < 0) {
        perror("Fork failed");
        exit(1);
    }

    // Create third child process
    pid3 = fork();
    if (pid3 == 0) {
        // Child process 3
        process_task("Task-C", 3, 2);
        exit(0);
    } else if (pid3 < 0) {
        perror("Fork failed");
        exit(1);
    }

    // Parent process monitors children
    printf("\nParent process (PID: %d) monitoring children...\n", getpid());

    // Wait for all children to complete
    for (int i = 0; i < 3; i++) {
        pid_t finished_pid = wait(&status);
        printf("Child process %d finished with status %d\n",
               finished_pid, WEXITSTATUS(status));
    }

    printf("\nAll processes completed. Context switching demonstration finished.\n");

    return 0;
}

OUTPUT

c@c:~/cos3105$ ./context_switch_among_process
Process Context Switch Demonstration
====================================

Context Switch Information:
==========================
Parent PID: 1088
Current PID: 25636
Process Group ID: 25636
User ID: 1000
Group ID: 1000
Process Task-A (PID: 25638) started
Process Task-A: Step 1/3 (PID: 25638)

Parent process (PID: 25636) monitoring children...
Process Task-B (PID: 25639) started
Process Task-B: Step 1/4 (PID: 25639)
Process Task-C (PID: 25640) started
Process Task-C: Step 1/2 (PID: 25640)
Process Task-A yielding CPU...
Process Task-C yielding CPU...
Process Task-A: Step 2/3 (PID: 25638)
Process Task-C: Step 2/2 (PID: 25640)
Process Task-B yielding CPU...
Process Task-B: Step 2/4 (PID: 25639)
Process Task-A yielding CPU...
Process Task-B yielding CPU...
Process Task-C (PID: 25640) completed
Process Task-A: Step 3/3 (PID: 25638)
Process Task-B: Step 3/4 (PID: 25639)
Child process 25640 finished with status 0
Process Task-A (PID: 25638) completed
Process Task-B yielding CPU...
Process Task-B: Step 4/4 (PID: 25639)
Child process 25638 finished with status 0
Process Task-B (PID: 25639) completed
Child process 25639 finished with status 0

All processes completed. Context switching demonstration finished.
